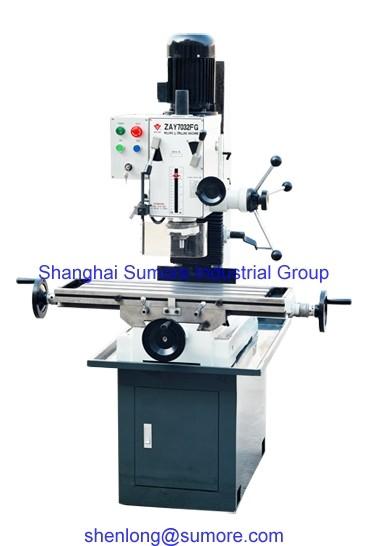

gear driven vertically swivel hobby metal working mill drill machine

Specifications

model ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG

drilling capacity 25mm 32mm 40mm 45mm

end milling capacity 20mm 20mm 32mm 32mm

face milling capacity 63mm 63mm 80mm 80mm

headstock travel(Z) 80mm 130mm 130mm 130mm

cross axis(Y) 140mm 175mm 175mm 175mm

longitudinal axis(X) 290mm 500mm 500mm 500mm

throat 203mm 260mm 260mm 260mm

table size 520X160mm 800X240mm 800X240mm 800X240mm

head stock swivel angle 90 degree vertically

motor power 370W 750W 1100W 1500W spindle speed 95-1420rpm 80-1250rpm 80-1250rpm 80-1250rpm

packing size 680*750*1000mm 770*880*1160mm 770*880*1160mm 770*880*1160mm

weight 240kg 365kg 370kg 372kg

Located in Shanghai , we have been in this field for over 10 years . Now we mainly supply lathes , mills , drills , cncs for the hobby and industrial market with over 100 models for your choices.

So far ,we have enjoyed considerable good reputation from our customers all over the world because of the high quality and first-class after sale service.We are always trying to supply you better products and service . please contact us directly via shenlong@sumore.com .

Hope to cooperate with you!
